1992 JAGENBERG SYNVERT 35-165 DL | Paper & Converting Equipment, Sheeters

- Siemens Simadyn D-Digital Drive
- Tolerance: +/- 1/64"
- Sheet Size Range 17" to 65"
- Min. Slit Width 16.75"
- Knife Load 400lbs/3000sq ft
- Trim Width 65"
- Power Supply: 460V
- Number of Slitters 3 Jagenberg Tru-Slit
- Decurling Double decurlers with multiple diameters.
- Backstands 8 units - 4 on each side
- Max. Roll Diameter 72" for a set of 2 rolls
- 60" for a set of 4 rolls
- Min. Roll Width 20"
- Max. Stack Height 60"
- Backstand Chuck Sizes 3"; 5"; 6"; 12"

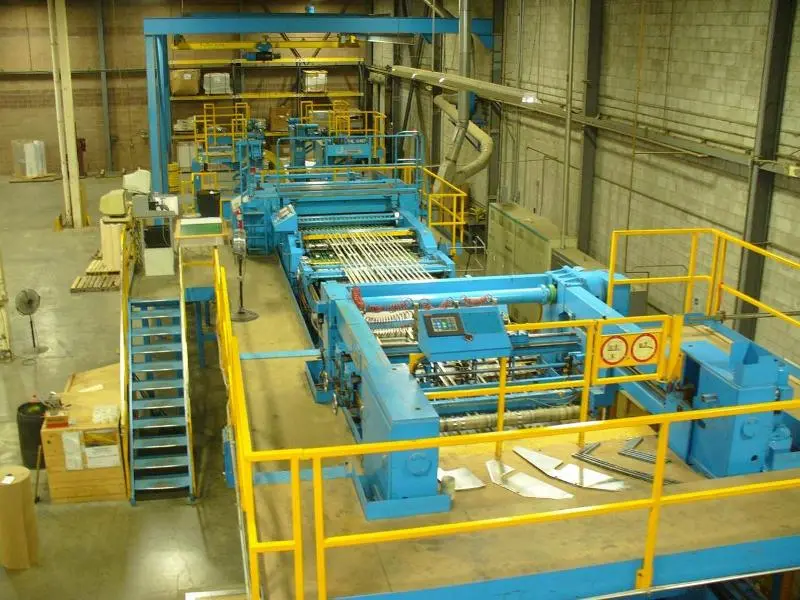

In Opeartion

Features:
PALLATOMAT, which permits complete automatic operation. The finished skid is removed and the new skid is positioned to receive sheets without operator intervention.
The 8 position unwind stand is designed as a turntable. The unit has 4 rolls stands on each side and is rotated after the first set of rolls has been consumed.
The two decurlers have different diameter decurler bars. One size bar is used for paper grades, while the second is used for board grades.
Includes roll diameter sensor, allowing the unwind to automatically stop leaving a tail for splicing on the next roll.
Includes automatic splice detection.
Maintenance and operational diagnostic system.
Includes 3 Jagenberg Tru-Slit slitters for trimming and slitting and/or splitting.
Capable of sheeting lightweight papers or heavy weight board with excellent quality.
The sheerer is completely automatic, requiring roll changes, only after four rolls.
Automatic length and squarness settings.
Includes drag link gearing that extends knife life and provides a better cut for heavy weight grades.
